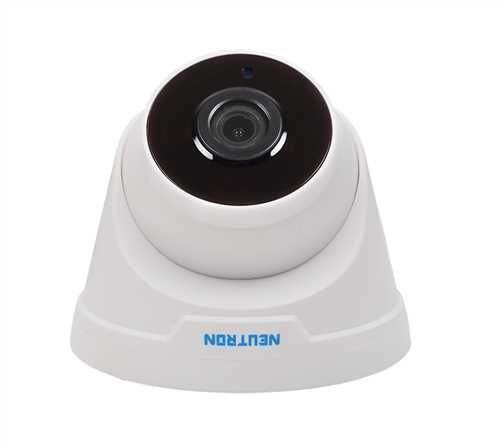

IPC344-SR3-NPF-36-A
Sensor
1/2.7 CMOS
A.I.
Description
Human detection
Support
Video images
Description
Intelligent coding
Support basic mode, advanced mode, reduce storage footprint
Video processing
H.264/H.265 video coding; Support for dual code streams
System
3MP@25、2304*1296@25、1080P@25
Resolution
main stream: 2304*1296、1920*1080
sub stream 352*288（CIF）、704*288（2CIF）、640*360、704*576（default）
OSD
Support time OSD, custom OSD, up to 4
Privacy area
support，up to 4
Regional Augmentation
support，up to 8
WDR
Support D-WDR
Noise
Support 2D、3D
Shutter
Support automatic/manual mode
Supports low drag mode
Supports indoor 50/60Hz shutter mode to suppress power frequency flicker
Video mode
Support transparent (default), bright, standard three scene mode selection, adjust the image style preferences
Software
Description
Upgrade
Support local upgrade of WEB interface
Support Guardtools batch upgrade
Support cloud upgrade
client application
Support mobile APP video preview (iOS, Android), upgrade, humanoid setting, alarm sound uploading and other functions
Support PC client to IPC local management, to achieve multchannel IPC live playback, local hard disk storage, etc
Audio
Description
Audio processing
Support G. 711U, G. 711A codec standard
Supports tr
Network
Description
IP Acquisition Mode
Full Netcom (enabled by default), DHCP, static IP address
Protocol
Support IPv4、TCP、UDP、DHCP、RTP、RTSP、DNS、DDNS、NTP、 port mapping and other network protocols;
Compatibility
Support ONVIF standard protocol, realize video preview and recording of docking mainstream brand NVR, PC client, etc.
Interface characteristics
Description
Network status indicator
Support
Alarm interface
not support
audio port
Support 1 MIC/Line input, 1 audio output, compatible with external audio amplifier board
Network Interface
Support 10M/100M adaptive network port
Hardware
Description
Working environment
-10℃~60℃（-22°F~140°F）
Power supply
DC12V±25%, support anti-reverse connection, overvoltage, overcurrent protection, input short circuit protection
Reliability
7*24 hours -30℃-60℃ high and low temperature cycle test is stable and reliable.
Power port 2KV lightning protection, network port 4KV lightning protection, in line with national and international standards
